Passive Stereo Volume Attenuator - $50 (Sudden Valley)

Passive Stereo Volume Attenuator 1 thumbnail

google map

condition: like new

make / manufacturer: JBL

model name / number: Nanopatch

delivery available

QR Code Link to This Post

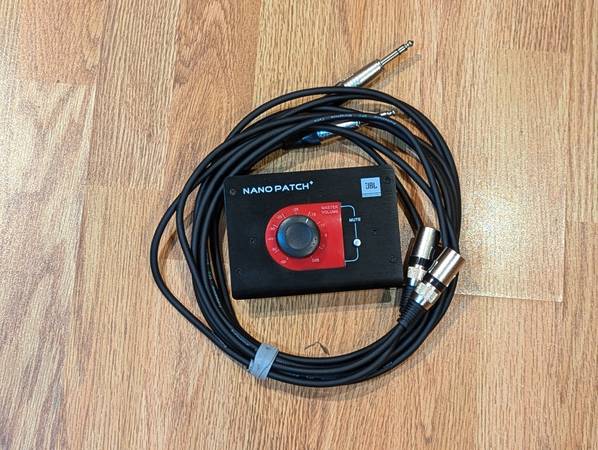

Passive stereo volume attenuator with XLR:1/4" cables (~9ft)
Balanced or unbalanced audio - inputs and outputs are wired in parallel.
No power supply needed.

SPECIFICATIONS
Input Connectors:
2 x Combination XLR/TRS 1/4-inch (6.5mm) balanced/unbalanced
1 x 1/8 inch (3.5mm) Mini Jack

Maximum Input Level: +26dB
Input Impedance: 5K ohms

Output Connectors:
2 x TRS 1/4 inch (6.5mm) balanced/unbalanced
1 1/8 inch (3.5mm) Mini Jack

Max Output Level Output: > +26dB
Output Impedance: 0-5K ohms

Frequency Response :
0/0.15dB (10Hz - 40KHz)

Signal-To-Noise: better than -120dB
Channel Cross Talk: > -80dB
Distortion:: < 0.0004%

Dimensions (W x D x H):
5.1inx 3.75in x2.0in (130mmx95mmx51mm)
Weight:
0.8 lbs (.34 kg)
